Experience the Future of Printing –
the Cutting-Edge ORCA DTF is Here!

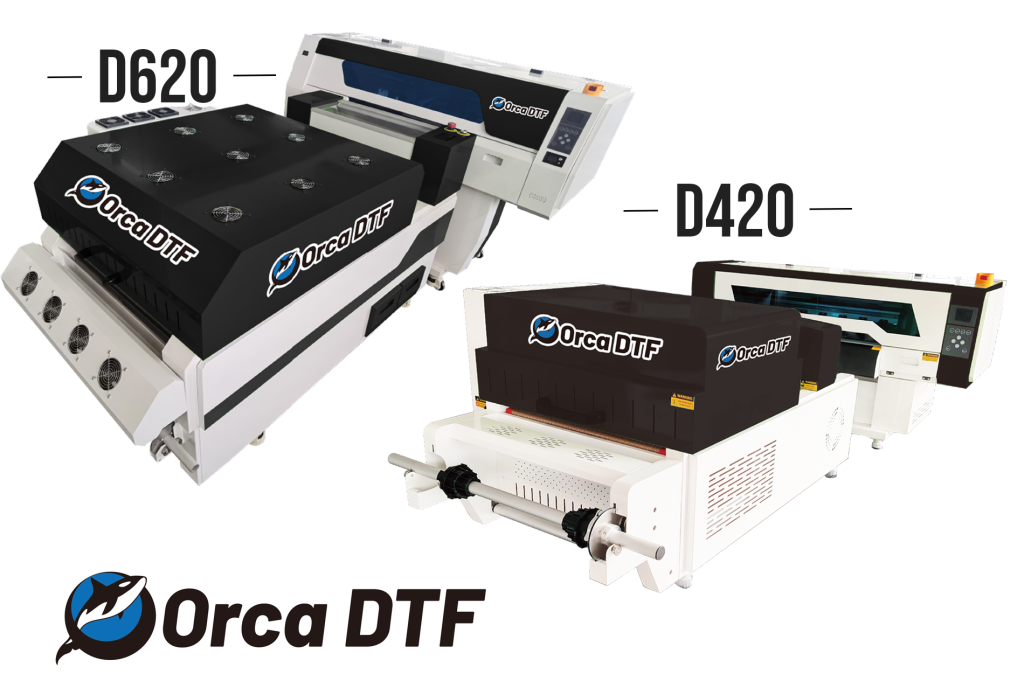

Orca DTF® D420 & D620 DTF Printer & Shaker Bundle
Meet the First High-Volume Commercial DTF Printer & Shaker Designed to Fit Through Standard Doorways! Seeking a High-Performance transfer printer that’s user-friendly, quick to master, AND fits seamlessly into nearly any shop? What you’ve been looking for... has arrived!

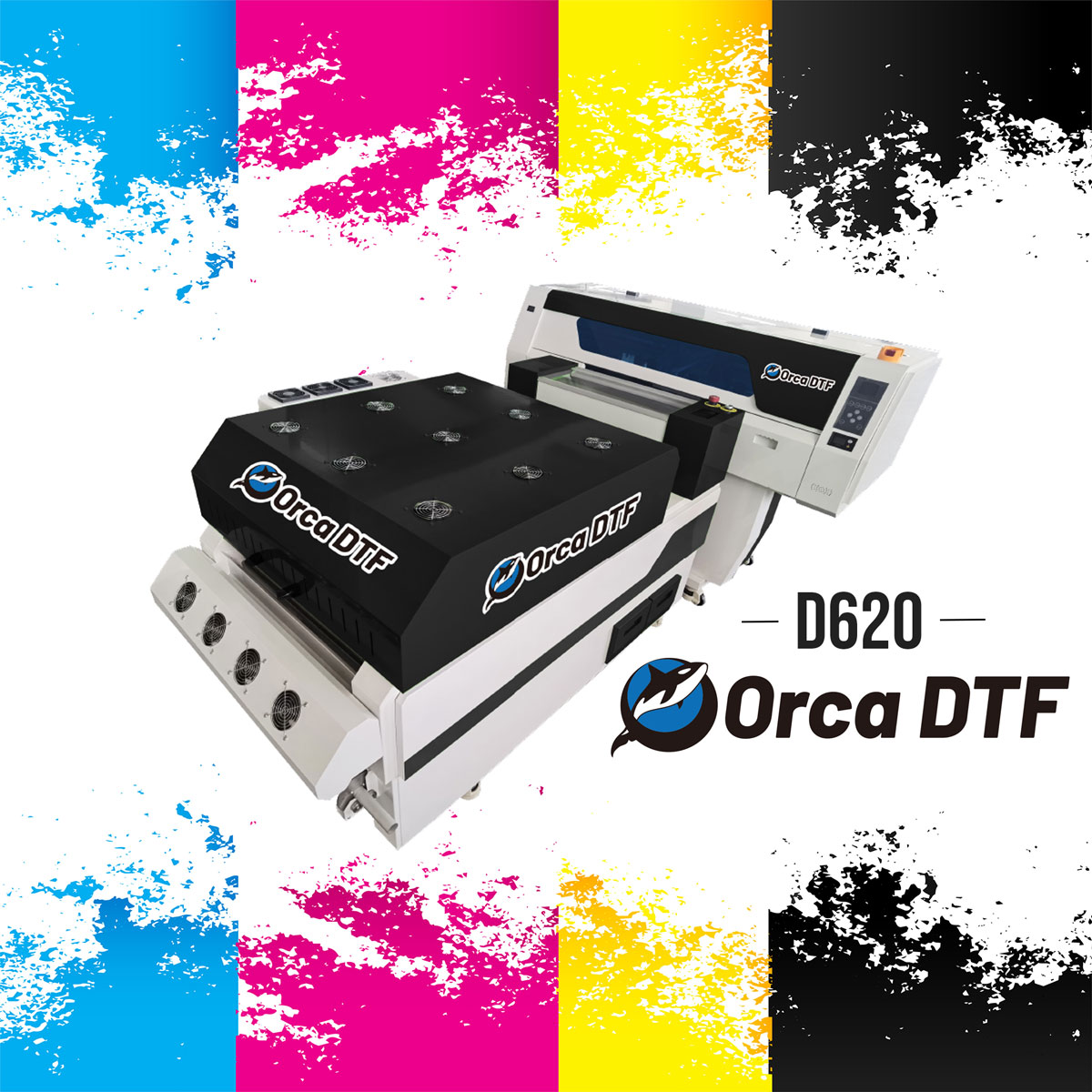

Orca DTF D620 Series
TENSION BAR FILM FEEDING SYSTEM
The intelligent tension bar film feeding system applies optimal tension to the film, resulting in flatter, smoother outputs.

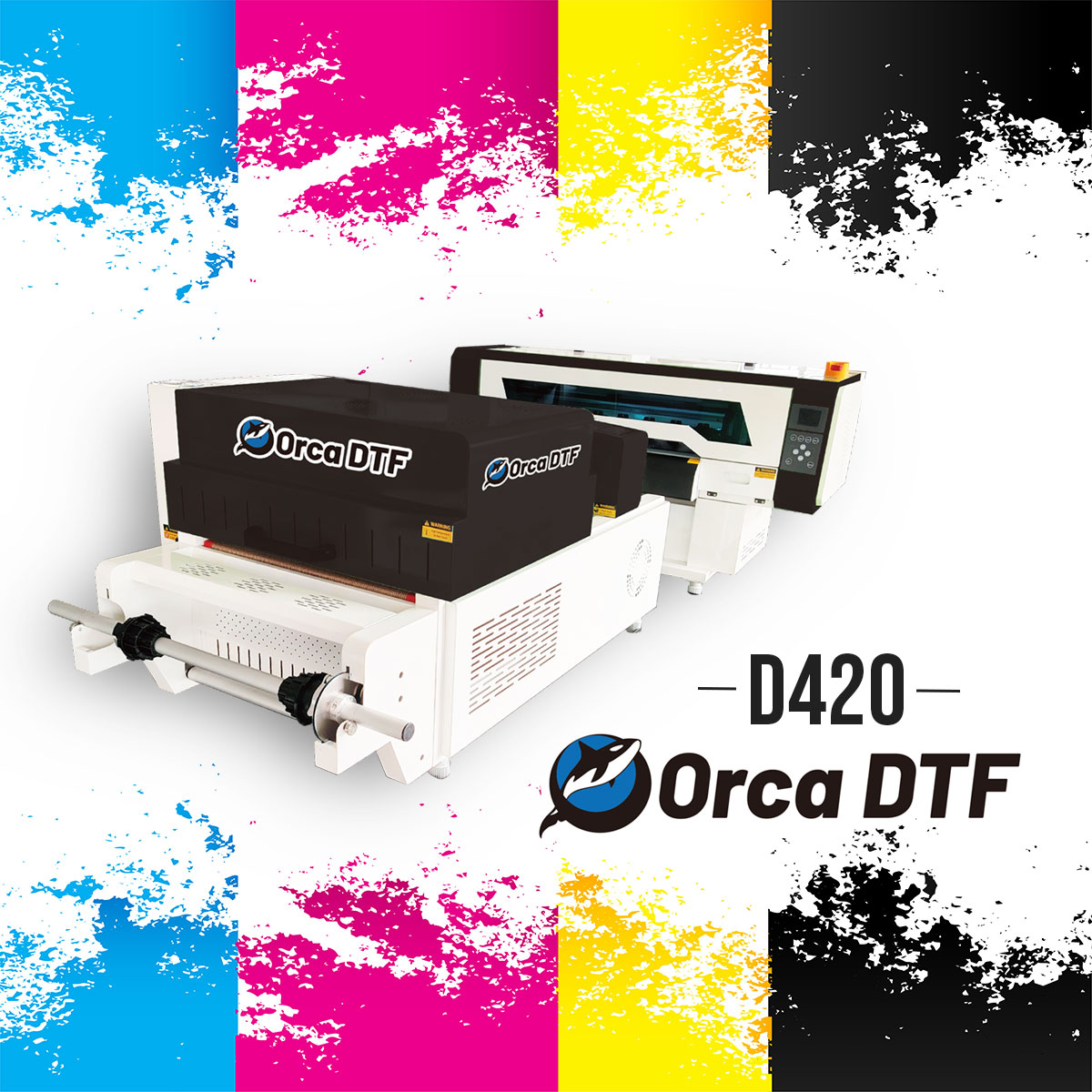

Orca DTF D420 Series
ELECTRIC PINCH ROLLER CONTROL SYSTEM
The Pinch roller system ensures even tension and accurate film feeding, enhancing the precision of your prints.
Product Advantages
ADJUSTMENT-FREE PRINT HEAD INSTALLATION
The printer of the D620 DTF printing system features a newly-designed print head component that doesn’t require adjustment to the print heads when installing them. Once you put the print head at the position, it will easily nest in the base in place.

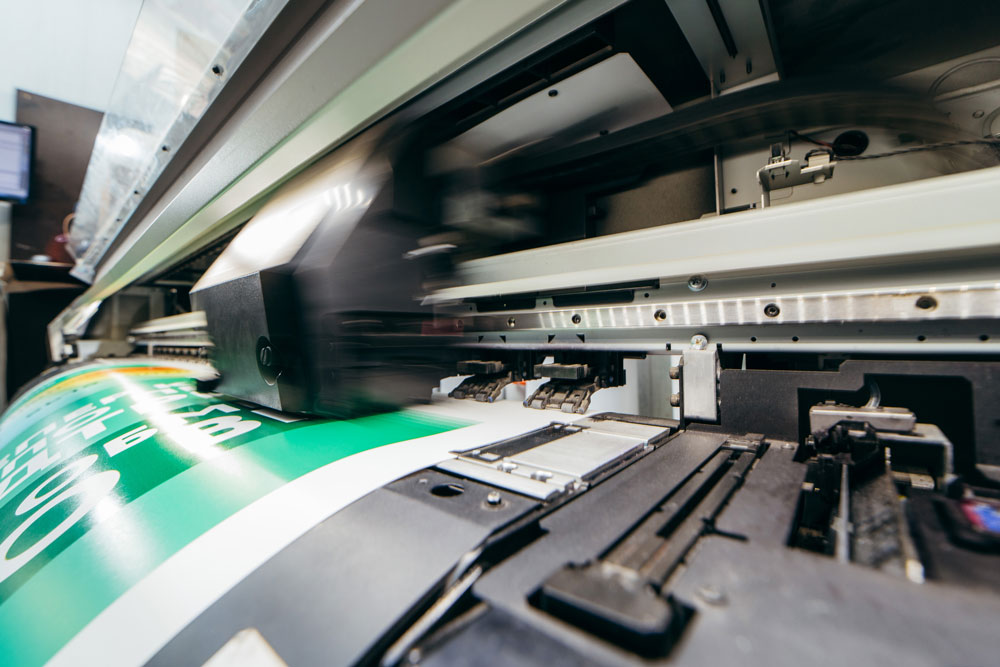

ELECTRIC PINCH ROLLER CONTROL SYSTEM
With the electric pinch roller control system, the film will be evenly stressed and fed more accurately. Just a single touch of the button will make it work.
WHITE INK STIRRING DEVICE
The white ink stirring system keeps your white ink in optimal condition with an automatic stirring device, ready to deliver exceptional quality at any moment.

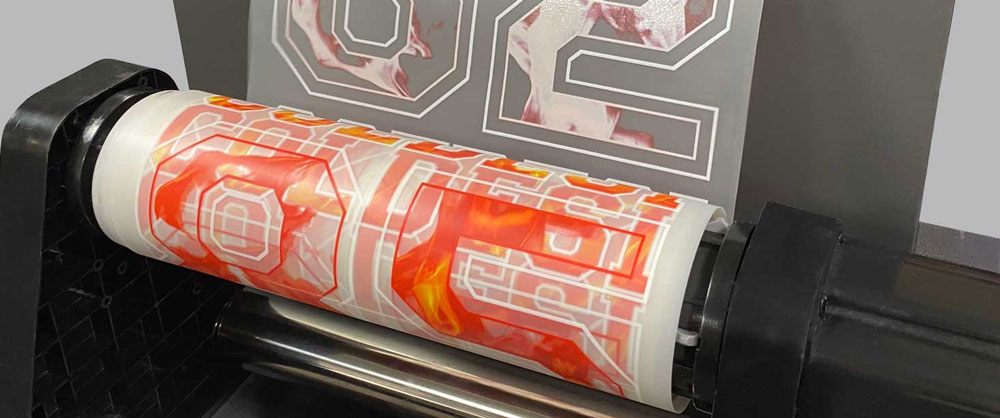

TENSION BAR FILM FEEDING SYSTEM
The intelligent tension bar film feeding system applies optimal tension to the film, resulting in flatter, smoother outputs.
PRINTING PLATFORM BACKLIGHT
The backlight under the printing platform enhances visibility, enabling immediate quality checks during printing process.
AUTOMATIC PRINT HEAD MOISTURIZING SYSTEM
The moisturizing system regularly sprays moisturizing liquid to keep the print heads at optimal functionality, ensuring clean and clear printing.
Features
Our Professional Machine Manufacturing Factory
Ensuring Material Safety with ORCA
Take Personalization to the Next Level with Our Technology
Premium Industrial-Grade Equipment
Model Comparison
D620
- Model: D620 DTF Power Shaker
- Print Head: 2/3/4/5 Print Heads
- Printing Tech: Piezoelectric Inkjet
- Acceptable Media: Width 620mm | Thickness Max 39 mil(1mm)
- Printing Width: 600mm
- Ink Cartridges: Transfer Pigment Ink (CMYK/LcLm/Fluorescent)
- Medium: Transfer Film
- Color Manage: ICC or density curve
- Heating System: Powder & Color fixing Machine
- Interface: RJ-45 / LAN
- RIP Software: Maintop & PhotoPrint
- Power Supply: 50HZ/60HZ, 220V / 110V / 10A
- Environment: Temp 20℃ to 28℃ | Humidity 65% to 75%
- Dimensions: L1840mm * W780mm * H1400mm
- Weight: 165kg
D420
- Model: D420 DTF Power Shaker
- Print Head: 2*i1600 & 3200 & F1080 Optional
- Printing Tech: Micro Piezo Inkjet Printing
- Acceptable Media: Width 450mm | PET Film
- Printing Width:<= 430mm
- Ink Cartridges: Transfer Pigment Ink (6/4/8 Colors)
- Print Accuracy: 1200dpi ~ 1440dpi
- Color Manage: ICC or density curve
- Heating System: Powder & Color fixing Machine
- Interface: RJ-45 / LAN
- RIP Software: Maintop & PhotoPrint
- Power Supply: 220V / 5A
- Environment: Temp 15℃ to 32℃ | Humidity 5% to 40%
- Dimensions: L1280mm * W630mm * H790mm
- Weight: 135kg (Packing 155kg)
